DV9
The DV9 is a do-it-all carbon fiber hardtail designed to take you from the trailhead to the starting line, with a session at the pump track in between. Lighter-weight, with up-to-date geometry, and engineered to the same exacting standards as the rest of our line, it packs a ton of performance into a more accessible price.
GEOMETRY
Inspired by the World Cup Race Winning Exie USA, the DV9 features a rowdy-but-not-too-rowdy 66.5° head angle and ultra-playful 425mm chainstays. A low standover improves fit for the inseam-challenged rider, while size-specific seat tube angles give riders of all heights an efficient yet enjoyable riding position.
TIRE CLEARANCE
Whether you prefer the cushy and confident ride that 2.6” tires deliver or the blazing speed of weight-conscious 2.25” rubber, we’ve got you covered.
INTERNAL CABLE ROUTING
Internal cable routing used to be a pain in the ass but our internal tubes make routing easy. Just pop the housing through and it comes out the other end, no need for swear words or a pickset.

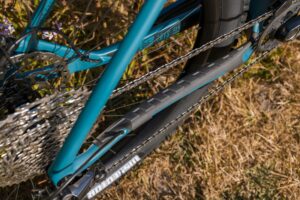

FRAME PROTECTION
Our thick rubber downtube and chainstay protection help dampen noise and protect the frame. We’ve also included a simple-yet-elegant adjustable top guide that allows you to drop the hammer, not your chain.
2 X BOTTLE CLEARNACE
The DV9 has clearance for two water bottles inside the front triangle of every size frame. Even the small.
PERORMANCE MEETS AFFORDABILITY
At Ibis Cycles, we believe that everyone deserves a high-quality bike, regardless of their budget. The idea for the DV9 came during a NICA high school Cross Country Mountain bike race. While coaching his daughter’s team, Ibis CEO and partner Hans Heim noticed many athletes were at a disadvantage due to their equipment.
Determined to level the playing field, he developed the DV9 and our award-winning Aluminum Frame models. His vision with the DV9? Create a fast, light weight, versatile bike, that you could pay for with a summer job.
LIFETIME WARRANTY
If it’s our fault, we’ll fix it. Simple as that.
DV9 GEOMETRY
120MM FORK (530MM AXLE TO CROWN)
| Nominal Size | SM | MD | LG | XL | |
|---|---|---|---|---|---|
| Seat Tube Length | A | 356 | 406 | 457 | 508 |
| Top Tube Length | B | 580 | 608 | 640 | 675 |
| Head Tube Length | C | 85 | 95 | 110 | 135 |
| Chainstay Length | D | 425 | 425 | 425 | 425 |
| Seat Tube Angle | E | 74° | 74.5° | 75° | 76° |
| Saddle Height for Seat Tube Angle | F | 650 | 700 | 750 | 820 |
| Head Tube Angle | G | 66.5° | 66.5° | 66.5° | 66.5° |
| Wheelbase | H | 1100 | 1145 | 1186 | 1237 |
| Stack | I | 615 | 622 | 635 | 658 |
| Reach | J | 404 | 435 | 470 | 511 |
| BB Drop | K | 65 | 65 | 65 | 65 |
| BB Height (with Rekon 2.6″ Tires) | 308 | 308 | 308 | 308 | |
| Standover | L | 693 | 714 | 762 | 776 |
| Trail | 114 | 114 | 114 | 114 |
SPECIFICATIONS
| Version | V2 |
| Frame Material | Carbon Fiber |
| Frame Weight | 1305g, 2.9 lbs (size large) |
| Wheel Size | 29″ (up to 2.6″ tires) |
| Front Travel | 120mm (compatible with 100mm–140mm) |
| Axle Width | 148mm rear / 110mm front |
| Seatpost Diameter | 31.6mm |
| Rear Brake | 160mm Post mount / 203mm max |
| Chainstay Length | 425mm |
| BB | 73mm English threaded |
| Chainline | 55mm chainline |
| Chainring Clearance | Up to 34T (round) |
| Derailleur Hanger | Universal Derailleur Hanger (UDH) |
| Tapered Headtube | IS 41/28.6 upper, IS 52/40 lower |
| Colors | Silver Lining, Electric Teal |
| Sizes | S, M, L, XL |
| Frame Warranty | Lifetime |
DV9 GALLERY
