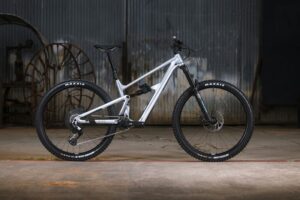

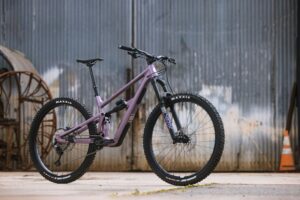

RIPMO AF
The Ripmo AF legend continues, bringing big-mountain capability to a rugged, aluminum package — blending long-travel confidence with trail-friendly efficiency.
With 160mm front and 150mm rear travel, dw-link suspension, and Flip chips for using a 27.5” or 29” rear wheel, it’s built for steep descents, chunky terrain, and climbs better than it should. Progressive geometry and a durable frame make it ideal for riders who push hard and want a bike that can keep up, lap after lap. Whether you’re racing enduro, exploring alpine singletrack, or sending the local lines, the Ripmo AF delivers the same legendary performance as its carbon sibling. The Ripmo AF has all of the same features as the carbon bike; in-frame storage with two bags, coil compatibility, progressive geometry, all at a more approachable price.
SIZE SPECIFIC EVERYTHING
Every rider deserves the same great ride feel, no matter their height or proportions. We use size specific seat tube angles and suspension kinematics to bring incredible balance and speed to all size riders. Even chainstay length and bottom bracket height are tailored to each frame size.
5 SIZES
We’ve added a third size in the middle of the bell curve to provide a fit that’s just right. With 80% of our riders falling between 5’5” and 6’0”, we introduced a new “Extra-Medium” size. The extra-medium now sits in the middle of our size range. If you are solidly a Large or XL previously, then your size remains the same.

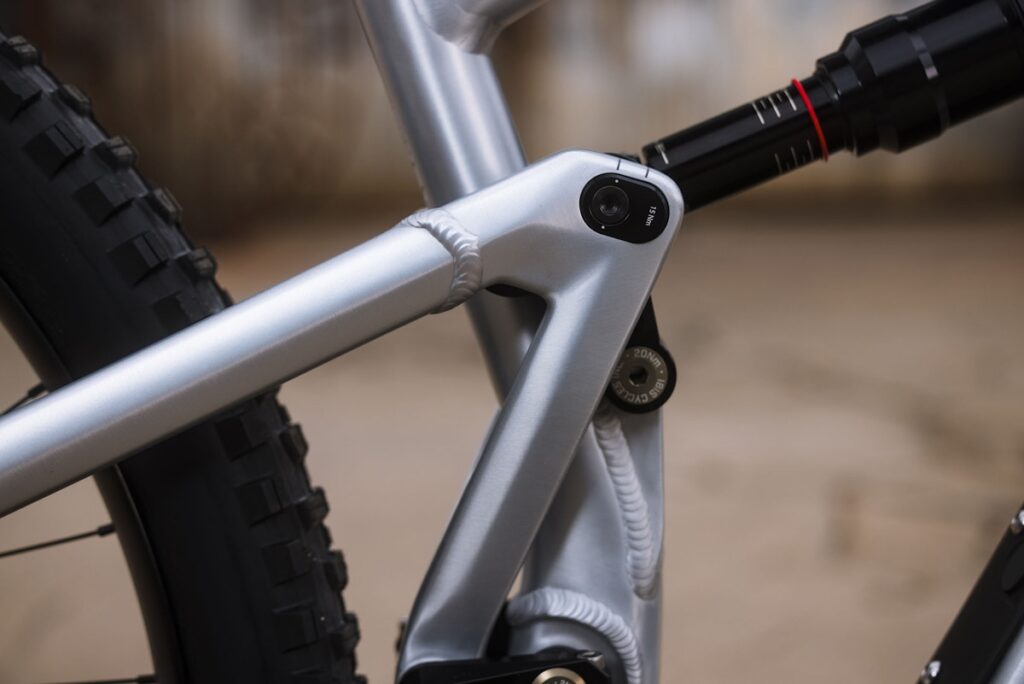

FLIP IT
We’ve added more adjustability with a new flip chip – now you can run 29” or 27.5”/29” mixed (MX) wheels on all sizes without compromising the geometry. The Extra Medium and larger sizes ship with 29” wheels, while the Small and Medium sizes come with MX wheels.

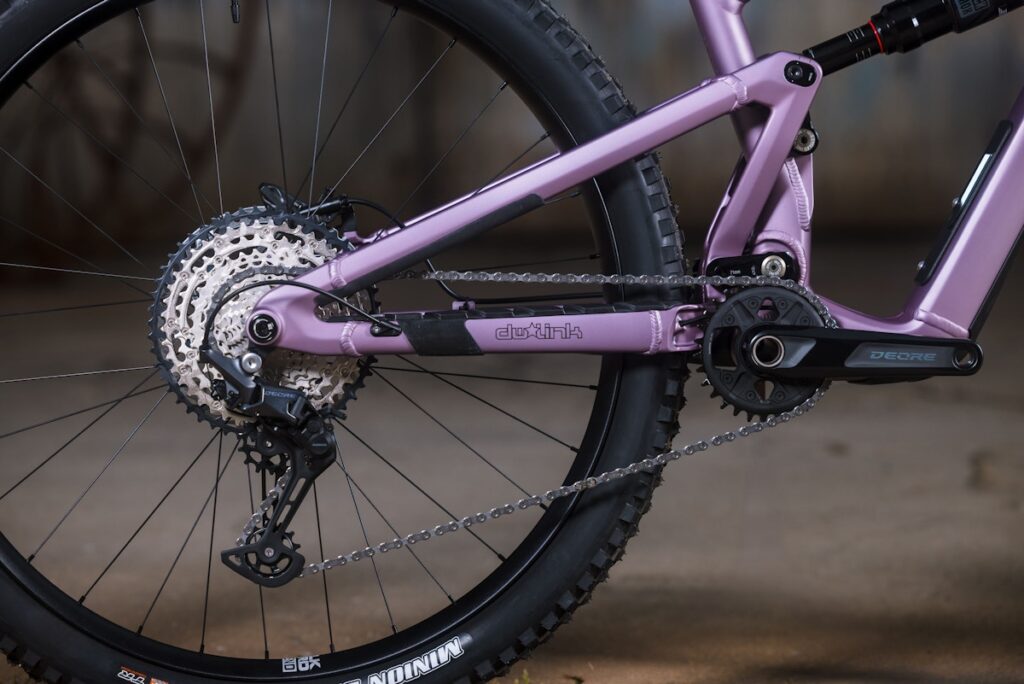

DW-LINK SUSPENSION
We continue to use the critically acclaimed dw-link suspension platform known for its efficient climbing and strong downhill performance; it sets the standard for modern mountain bikes.
Drawing on the race-proven HD6 design, the Ripmo now has a coil spring friendly progressive shock rate and shorter clevis which makes it compatible with pretty much any coil shock.
Our size-specific kinematics make sure every size bike pedals amazing while still keeping things quiet and calm on challenging trails.

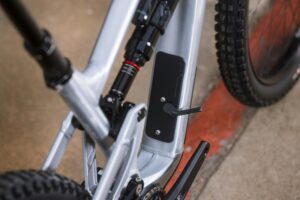

INTERNAL FRAME STORAGE
Get that gear off your back and into your bike with our frame storage system. The latch operates effortlessly, even in cold, muddy conditions while wearing gloves. The door is water-resistant, rattle-free, and robust.
Ibis has crafted a set of two internal bags for your snacks, tools, or whatever. The bags are crafted from durable, and water-resistant materials, with a bright interior to help see your stored items.
LIFETIME WARRANTY
If it’s our fault, we’ll fix it. Simple as that.
PICK YOUR SIZE
160MM FORK (575MM AXLE TO CROWN)
| Nominal Size | SM | MD | XM | LG | XL | |
|---|---|---|---|---|---|---|
| Seat Tube | A | 395 | 400 | 415 | 457 | 477 |
| Top Tube | B | 578 | 605 | 630 | 655 | 685 |
| Head Tube | C | 85 | 95 | 110 | 125 | 140 |
| Chainstay 29″ | D | 435 | 435 | 436 | 438 | 440 |
| Chainstay MX | D | 432 | 432 | 433 | 435 | 437 |
| Seat Tube Angle | E | 77° | 76.5° | 76.5° | 77° | 77.5° |
| Saddle Height for Seat Tube Angle | F | 650 | 700 | 745 | 790 | 830 |
| Head Tube Angle | G | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| Wheelbase | H | 1195 | 1219 | 1249 | 1286 | 1329 |
| Stack | I | 616 | 622 | 633 | 643 | 654 |
| Reach | J | 436 | 456 | 478 | 506 | 540 |
| BB Height* | 338 | 341 | 344 | 349 | 350 | |
| BB Drop 29″ | K | 36 | 33 | 30 | 27 | 24 |
| Standover | L | 693 | 734 | 757 | 772 | 784 |
| Recommended Seatpost Drop | 140 | 170 | 185 | 213 | 213 | |
| Crank Length | 165 | 165 | 170 | 170 | 170 | |
| Tire Size | 2.35-2.5″ | 2.35-2.5″ | 2.35-2.5″ | 2.35-2.5″ | 2.35-2.5″ | |
| Water Bottle Size | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz | 1 x 26oz |
*With Maxxis 29×2.4 WT tires = 748mm diameter, 27.5×2.5 WT rear tires = 708mm diameter.
SPECIFICATIONS
| Version | V2 |
| Frame Material | Aluminum |
| Wheel Size | Size XM–XL: 29” wheels Size SM–MD: MX wheels (MX or 29” option in all sizes via flip chip) |
| Front Travel | 160mm |
| Rear Travel | 150mm |
| Shock Specs | 230mm x 60mm (coil shock compatible) |
| Boost Axles | 148mm rear / 110mm front |
| Seatpost Diameter | 34.9mm |
| Rear Brake | 180mm Post mount / 220mm max rotor |
| Chainstay Length | 29″: 435–440mm, MX: 432–437mm |
| Bottom Bracket | Threaded (73mm English threaded) |
| Chainline | 55mm chainline |
| Derailleur Hanger | SRAM UDH |
| ISCG 05 Compatible | ISCG 05 Tab Mount available separately |
| Headset | ZS44 upper / ZS56 lower |
| Bottle Mounts | 26oz bottles fit inside the front triangle on all sizes |
| Frame Storage | Large Internal frame storage with easy access door |
| Frame Storage Bag | Ibis Stow bag |
| Colors | Metal AF or Rose Dust |
| Sizes | Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL) |
| Warranty | Lifetime frame warranty |
| Bushings Warranty | Lifetime replacement on bushings |
