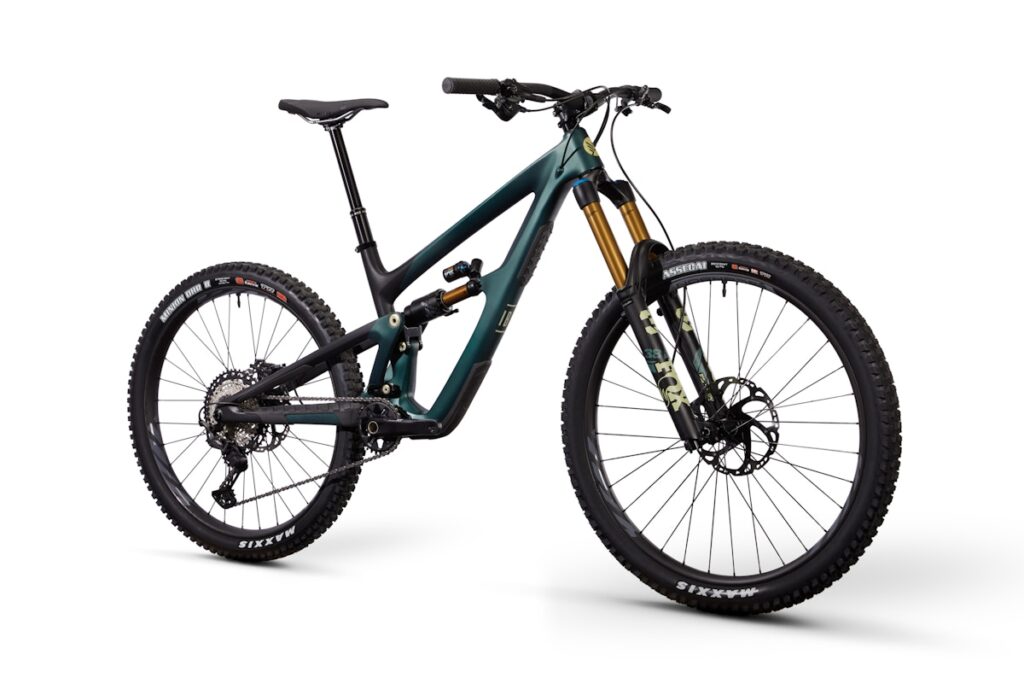

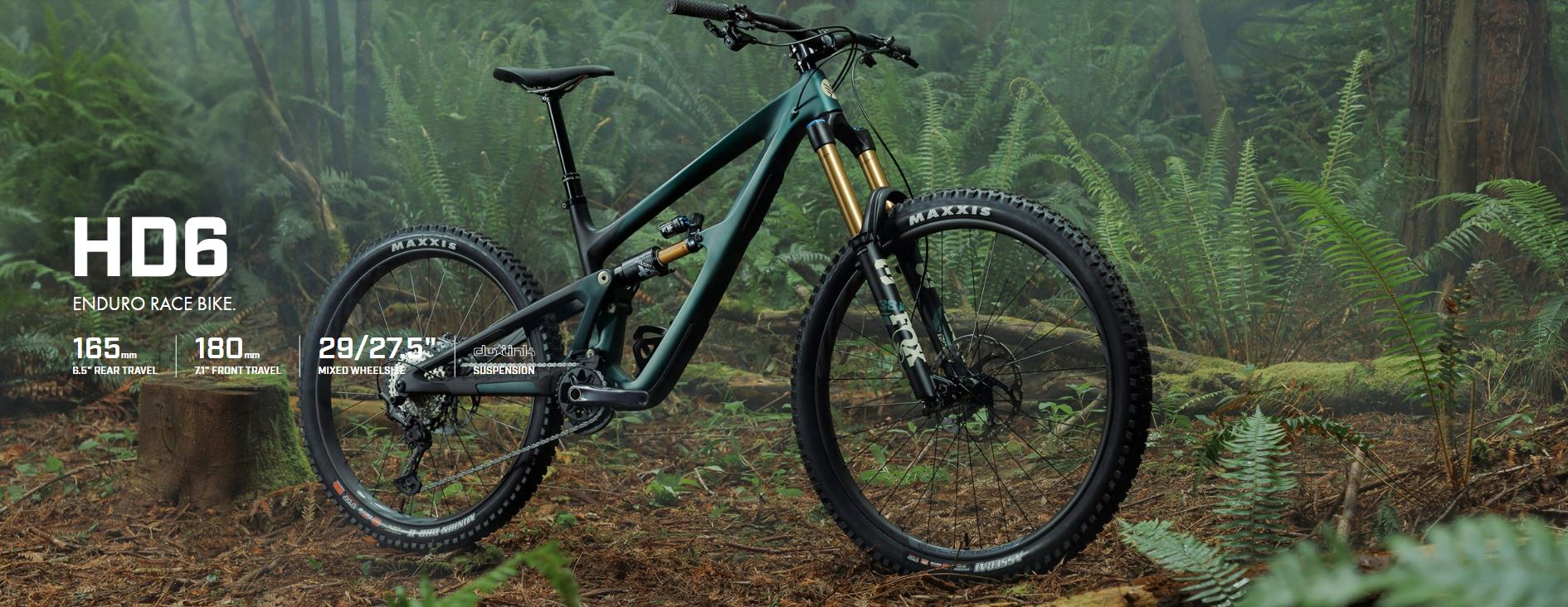

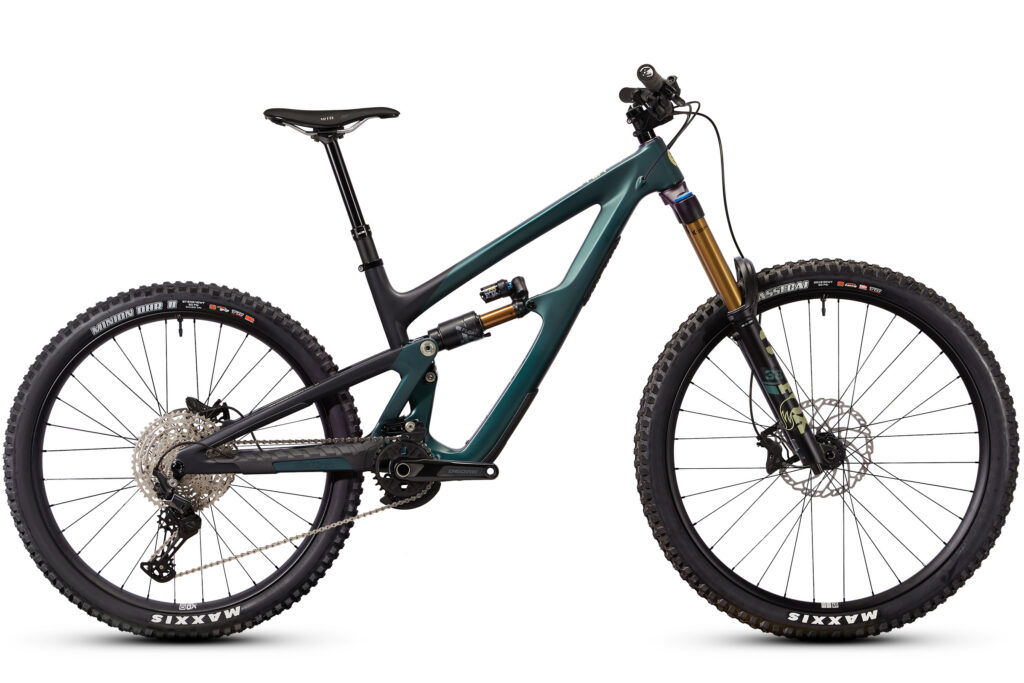

HD6
The HD6 is the evolution of one of the most successful enduro bikes in history. Designed with input from our Enduro World Cup team and building upon our award-winning Ripmo and HD lines, the HD6 features increased travel, a completely redesigned suspension layout, and mixed wheels.
GEOMETRY
The 29″ front wheel, bolstered by 180mm of travel, assures stability, whereas the 27.5″ rear wheel allows for additional maneuverability. The 165mm of travel skillfully manages any fallout. With a 64 degree head tube angle, a BB height similar to Mojo HD5, and a 435mm chainstay length, the bike maintains an equilibrium between agility and stability.
FIVE SIZES
In order to place every size rider in the same position over the rear wheel, the HD’s seat tube angles get steeper as frame size increases. With four sizes, this would have resulted in larger jumps in reach, so we added a fifth size. The smaller increments across five sizes means that you can find just the right size. We encourage riders to choose their bike size based on their desired reach and top tube measurements.

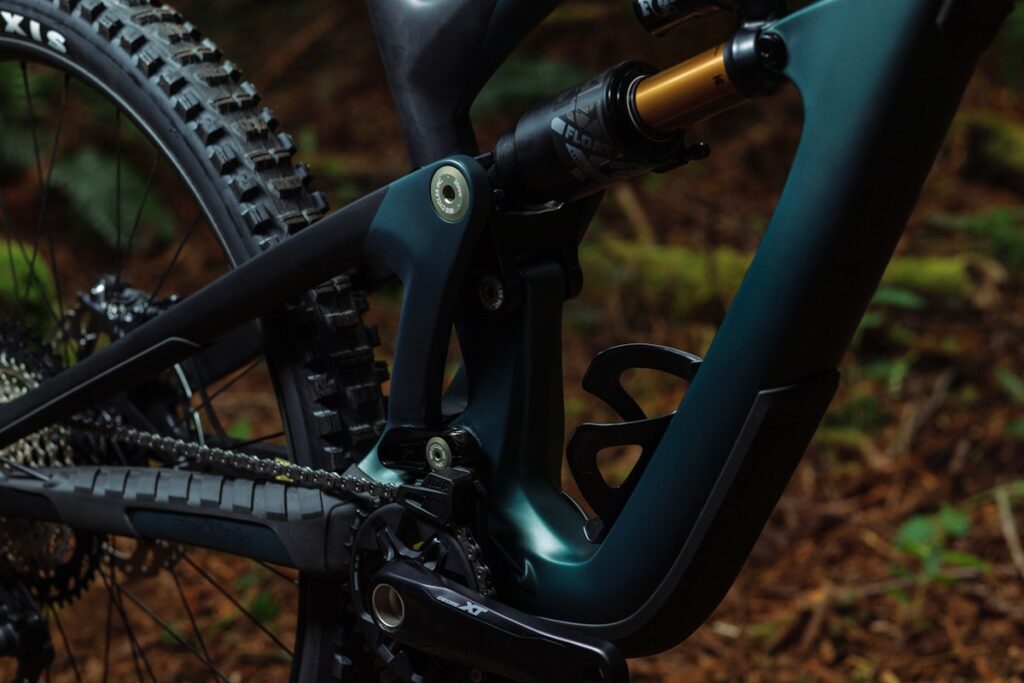

COIL COMPATIBLE

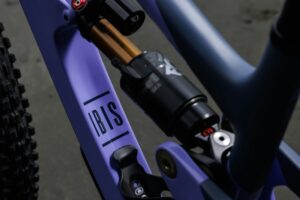

Our upper link suspension layout is progressive enough to be sensitive off the top, yet supportive enough for the biggest hits. It is also compatible with all coil shocks, for those longer race stages that can tax air shock performance.

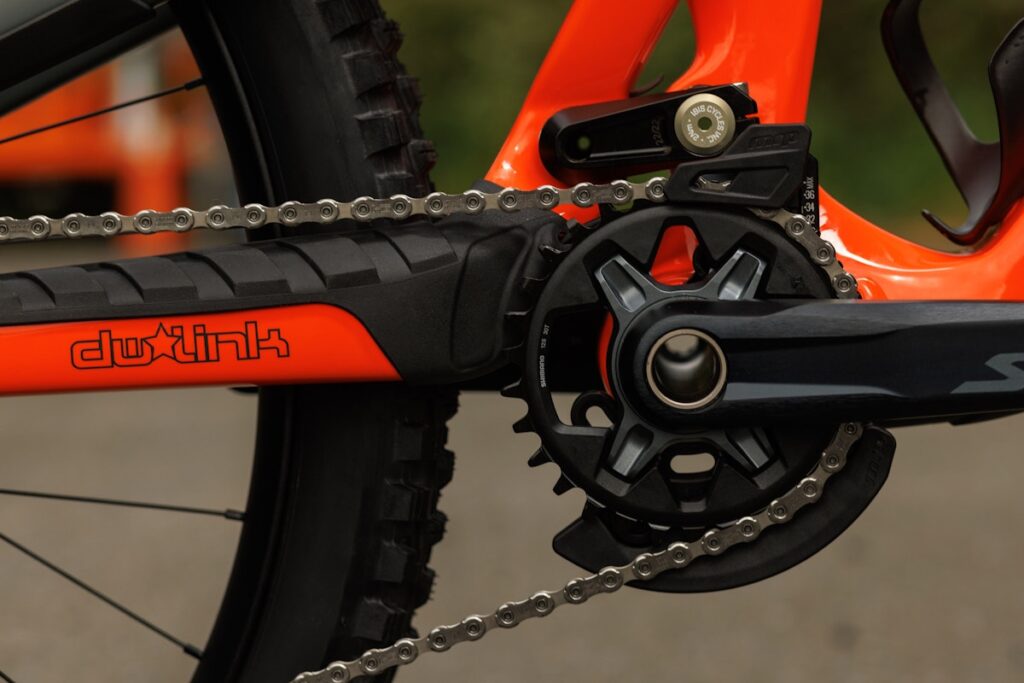

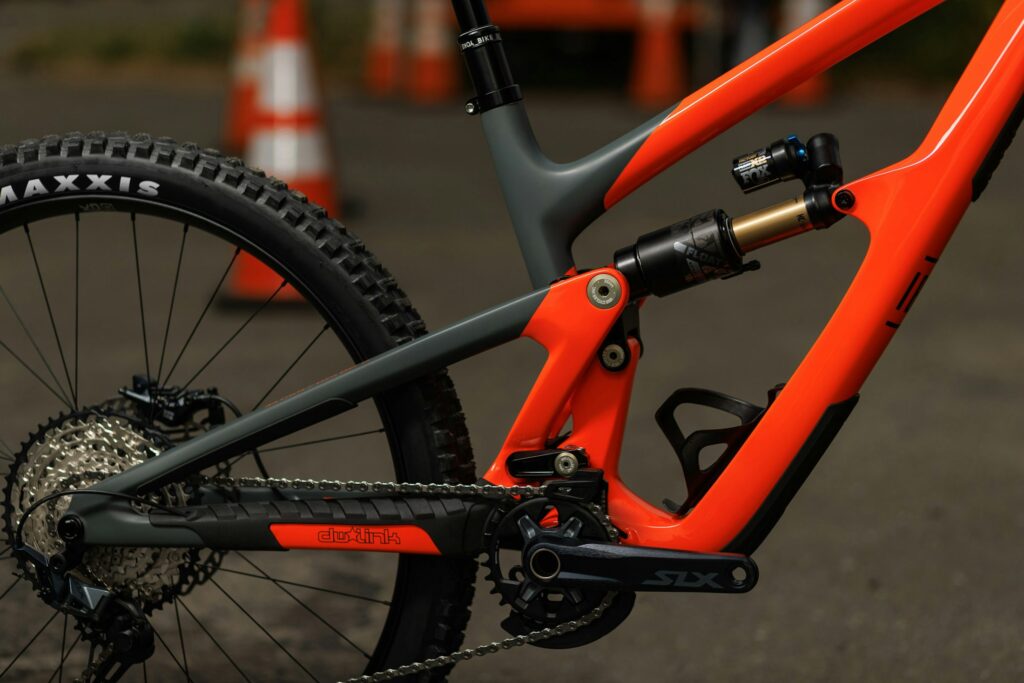

DW-LINK
The suspension layout may be new, but it’s still DW-Link. The inherent efficiency means you don’t need an overdamped shock to climb well. Less shock damping allows the wheels to stay planted on the ground, providing more traction and that hover-bike feel that our frames are known for. The HD6 climbs with a finesse that defies its enduro race pedigree.
TRACTION TUNE
Our custom tuned front and rear suspension feature extra light high speed compression and rebound damping to deliver unparalleled traction. This allows the wheels to flutter through rough terrain like a trophy truck storming through a set of whoops.

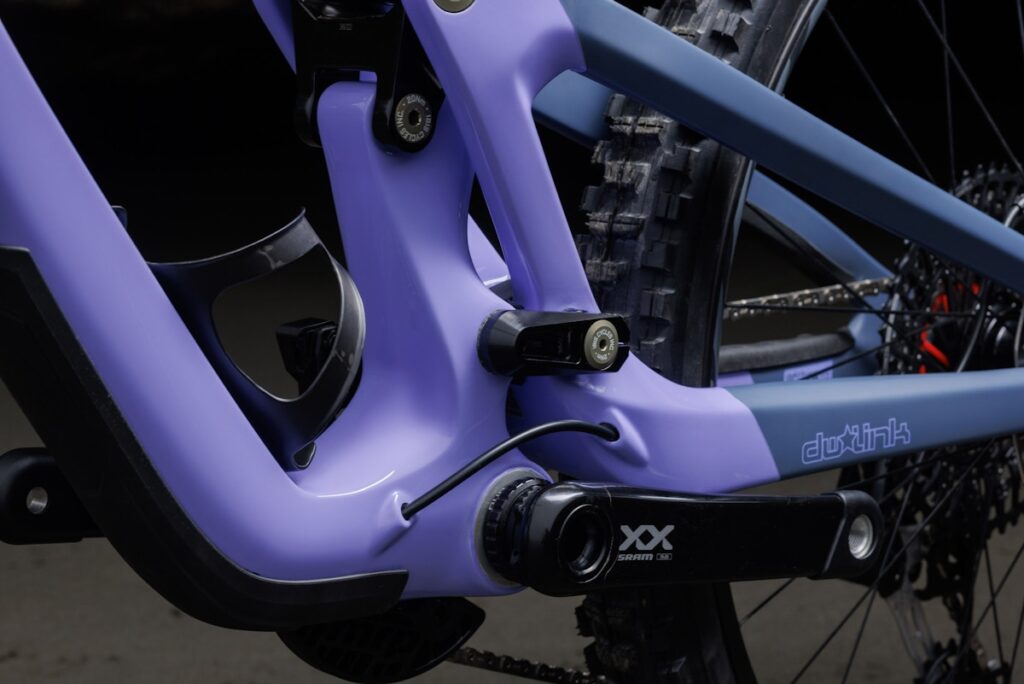

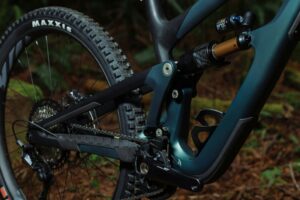

BUSHINGS
Tired of buying bearings each season? So were we. That’s why we’ve strategically employed bushings where they’re most effective and bearings elsewhere. The IGUS bushings in our lower link are not only lighter and stiffer, they’re virtually maintenance-free. We believe so strongly in them, we back them with free lifetime replacement.
LIGHTWEIGHT PREMIUM CARBON
All our bikes are built from the highest grade materials and optimized for the best strength, weight, stiffness, and ride performance — no matter how much you spend. The HD6 frame is sub 6 lbs without shock and our complete Enduro ready builds weigh as little as 32 lbs.
INTERNAL CABLE ROUTING

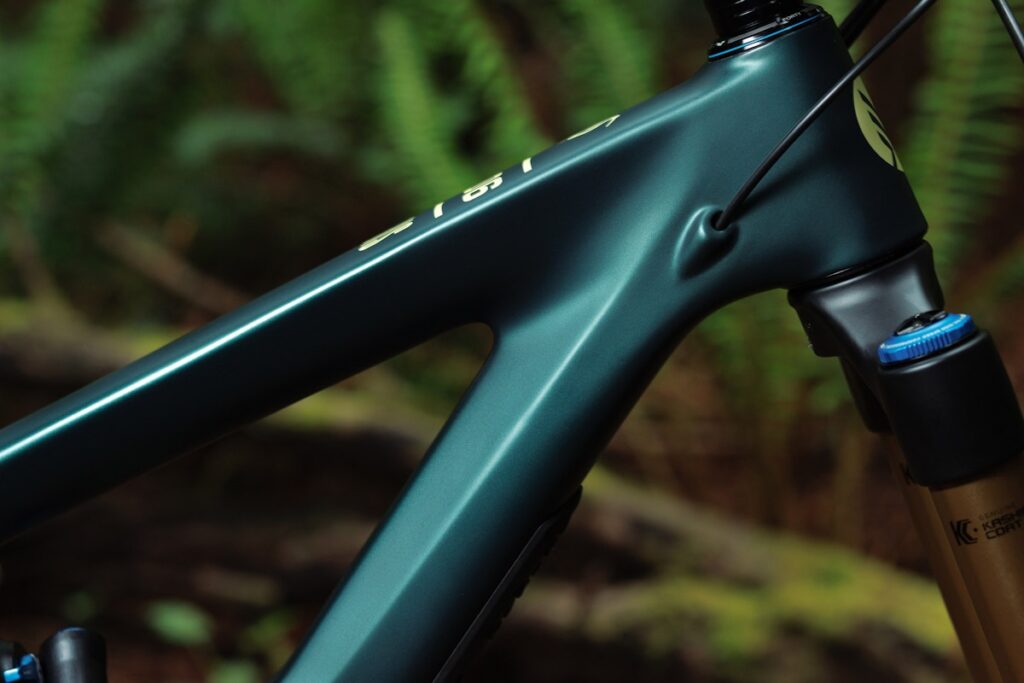

Bikes that look pretty on the outside should look pretty on the inside. We use carbon fiber tubes molded within each frame. Push the cable in, watch it pop out – a beautiful moment indeed.
PROTECT YOUR INVESTMENT
A thick rubber downtube protector deflects debris, while our chainstay protector features thick raised sections to help dampen chain slap noise. And our simple-yet-elegant linkage protectors stop mud and rocks thrown by the tire, keeping your beautiful bike beautiful.
LIFESTIME WARRANTY
If it’s our fault, we’ll fix it. Simple as that.

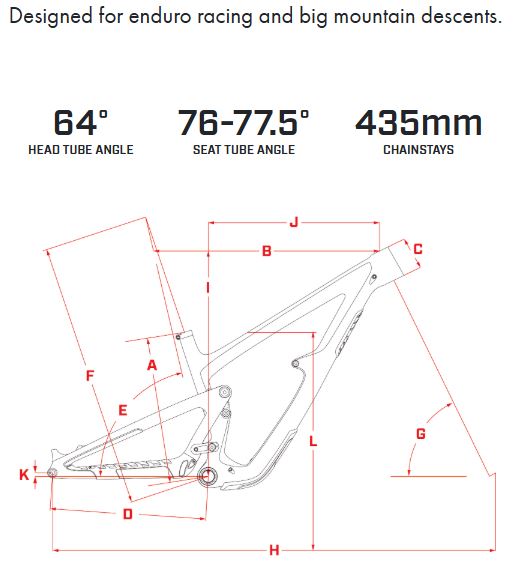

PROGRESSIVE GEOMETRY
180mm fork (593.7MM AXLE TO CROWN)
| Nominal Size | SM (1) | MD (2) | XM (3) | LG (4) | XL (5) | |
|---|---|---|---|---|---|---|
| Seat Tube Length | A | 400 | 400 | 406 | 450 | 470 |
| Top Tube Length | B | 585 | 610 | 630 | 655 | 685 |
| Head Tube Length (4mm stack of lower cup not included) | C | 81 | 86 | 91 | 100 | 115 |
| Chainstay Length | D | 435 | 435 | 435 | 435 | 435 |
| Seat Tube Angle | E | 76° | 76° | 76.5° | 77° | 77.5° |
| Head Tube Angle | G | 64° | 64° | 64° | 64° | 64° |
| Wheelbase | H | 1202 | 1228 | 1256 | 1288 | 1328 |
| BB Height (with 2.5WT Maxxis Assegai tires) | 345 | 345 | 345 | 345 | 345 | |
| BB Drop | K | 30 | 30 | 30 | 30 | 30 |
| Stack | I | 621 | 625 | 630 | 638 | 651 |
| Reach | J | 430 | 454 | 480 | 508 | 541 |
| Saddle height for seat tube angle | F | 650 | 700 | 745 | 790 | 830 |
| Standover | L | 725 | 735 | 752 | 765 | 769 |
| Trail | 136 | 136 | 136 | 136 | 136 | |
| Fork Offset | 44 | 44 | 44 | 44 | 44 |
SPECIFICATIONS
| Version | HD6 |
| Frame Material | Carbon front and rear triangle |
| Frame Weight | A size large HD6 frame with an X2 weighs 7.7 lbs / 3.5kg |
| Wheel Size | 29/27.5” mixed wheelsize, up to 2.5″ tire clearance |
| Front Travel | 180mm |
| Rear Travel | 165mm |
| Shock Specs | 230 x 65mm |
| Shock Eyelet Hardware | 25mm x 8mm front / 15mm x 8mm rear |
| Boost Axles | 148mm rear / 110mm front |
| Seatpost Diameter | 34.9mm |
| Rear Brake | 180mm Post mount / 220mm max rotor |
| Chainstay Length | 435mm |
| Bottom Bracket | Threaded (73mm BSA) |
| Chainline | 55mm chainline |
| Chainring | 30T – 34T |
| Derailleur Hanger | SRAM UDH |
| ISCG 05 Compatible | ISCG 05 Tab Mount available separately |
| Headset | ZS44 upper / ZS56 lower |

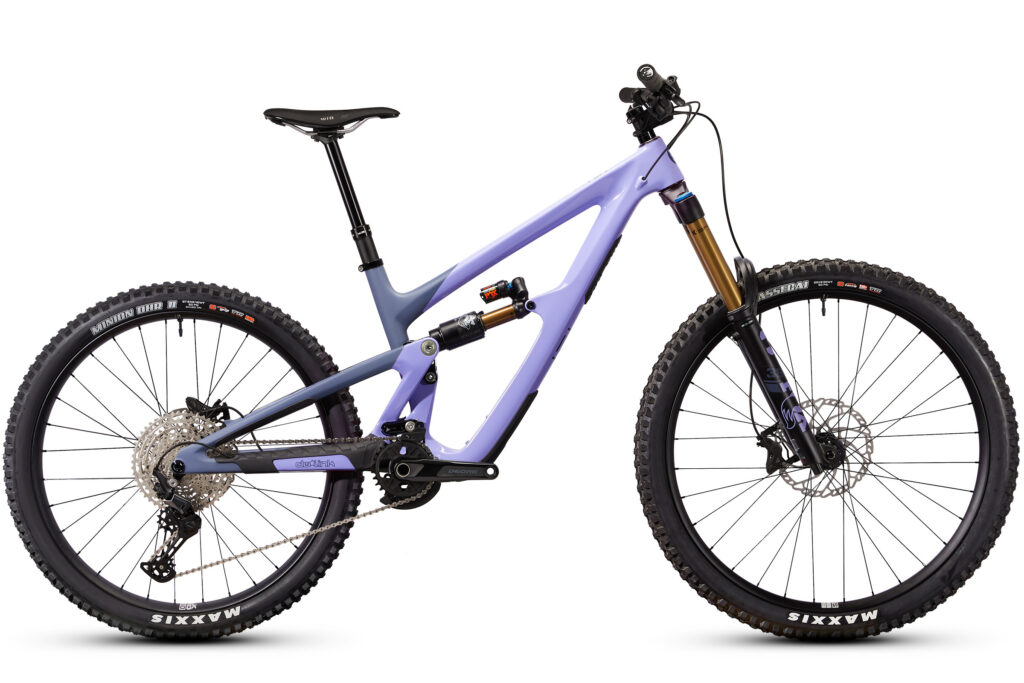

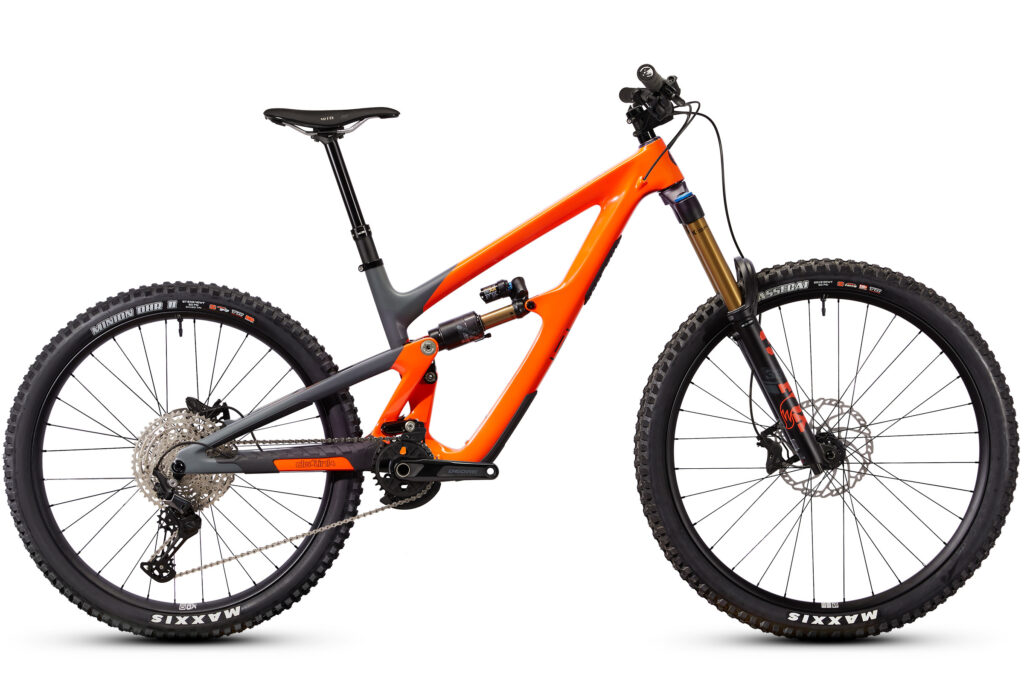

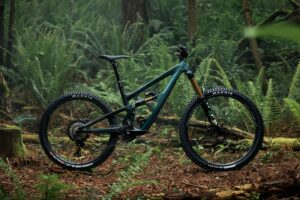

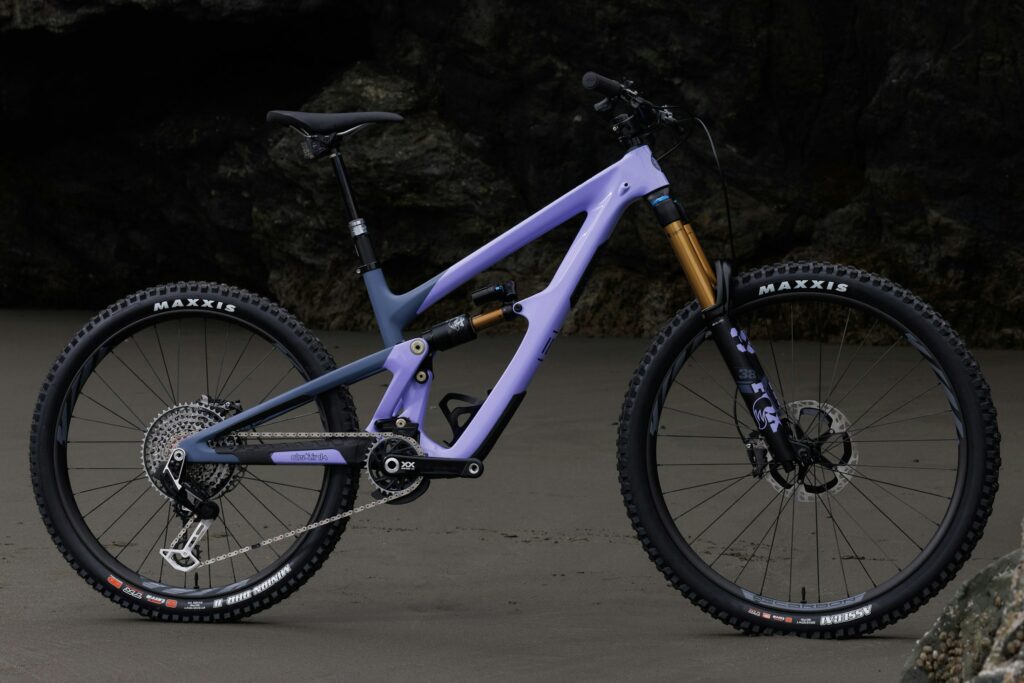

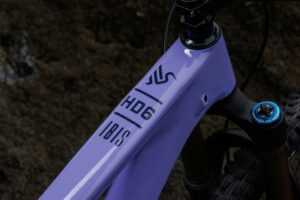

| Colors | Traffic Cone Orange, Enchanted Forest Green or Lavender Haze |
| Sizes | SM (1) /MD (2) /XM (3) /LG (4) /XL (5) |
| Frame Warranty | Lifetime |
